OSCAR

OSCAR

With their smooth, flat, and edgeless design, Oscar family luminaires become a seamless part of ceiling decor. Available in larger aperture sizes with higher lumen packages makes this family ideal for use in higher ceilings, typically found in commercial settings.

Oscar’s three different light modules are designed for multiple applications and are available for multiple ordering options, making it both aesthetically beautiful and highly functional.

Downloads

Includes all downloads based on your chosen specification.

Download selected
Download all

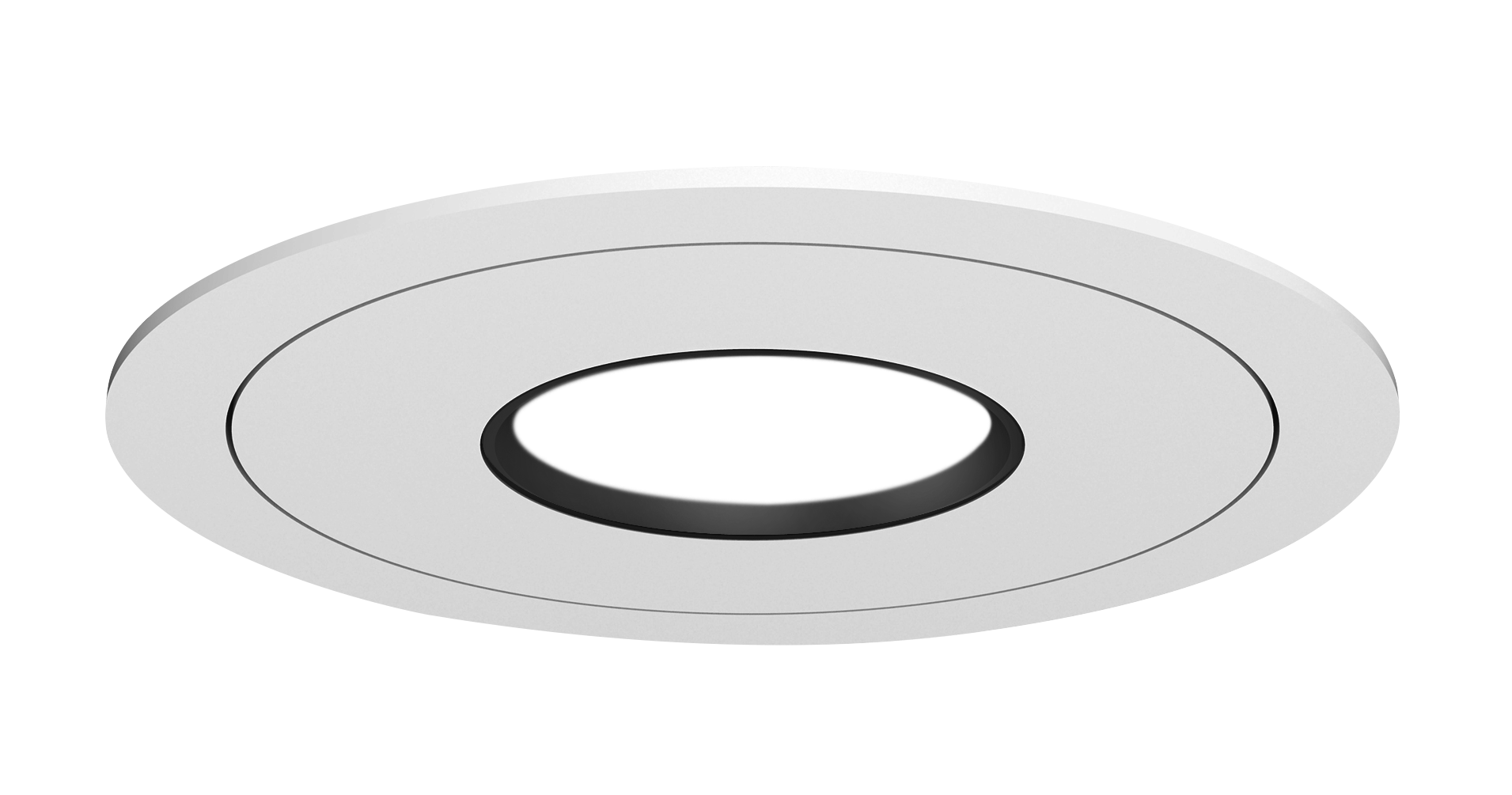

Oscar Small Round Trim

Trim Downlight

OSC-3-R-T-XX-RF

  • 2″ Light aperture
  • 3 3/8″ OD
  • Round trim downlight
  • 10W IC or 15W non-IC
  • Up to 810/1060 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trim Gimbal

OSC-3-R-T-XX-RG

  • 2″ Light aperture
  • 3 3/8″ OD
  • Round trim 30° gimbal
  • 10W IC or 15W non-IC
  • Up to 760/1010 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trim Wall Wash

OSC-3-R-T-XX-WL

  • 2″ Light aperture
  • 3 3/8″ OD
  • Round trim 95° wall wash
  • 10W IC or 15W non-IC
  • Up to 420/580 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

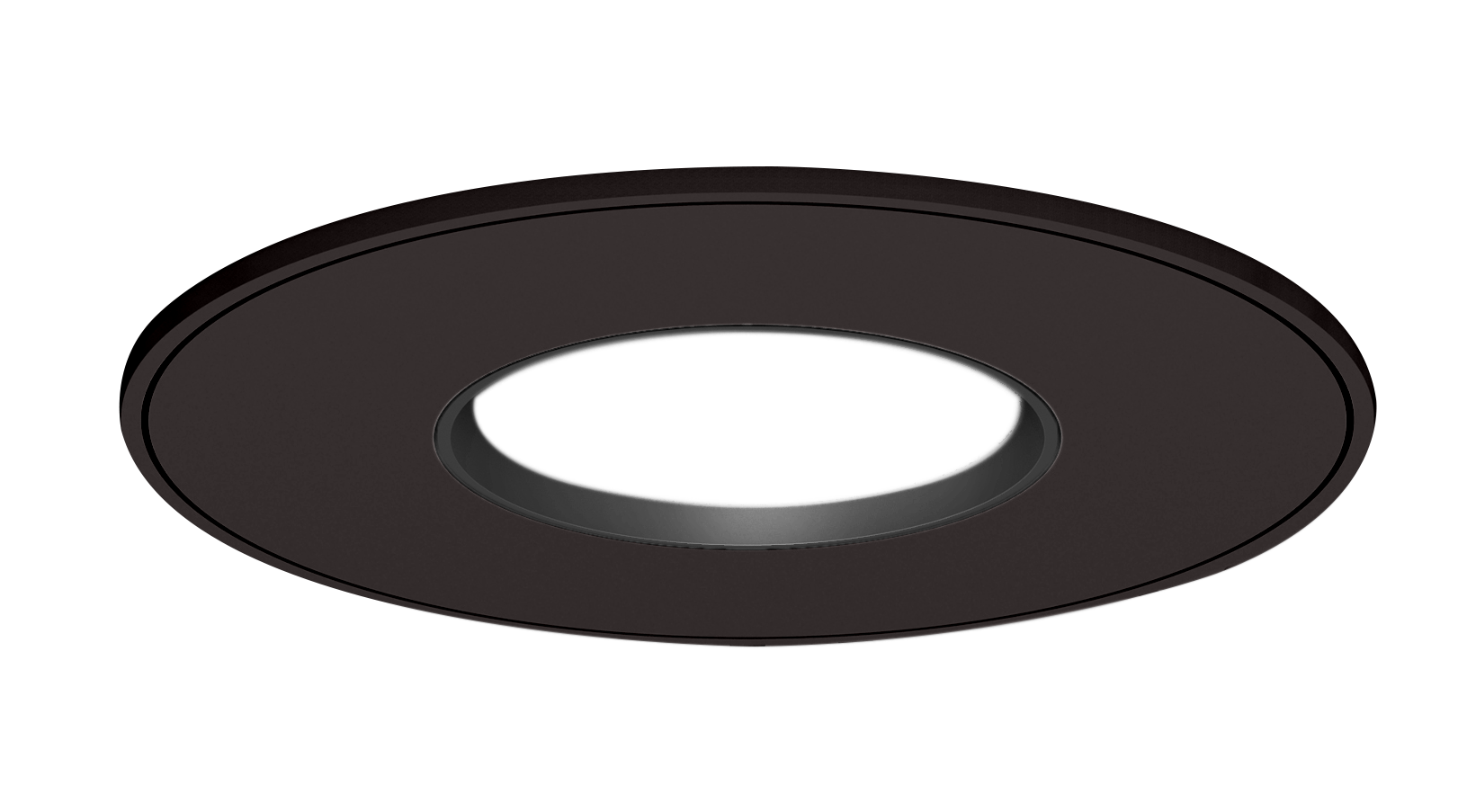

Oscar Small Round Trimless

Trimless Downlight

OSC-3-R-TL-XX-RF

  • 2″ Light aperture
  • 2 3/4″ OD
  • Round trimless downlight
  • 10W IC or 15W non-IC
  • Up to 810/1060 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trimless Gimbal

OSC-3-R-TL-XX-RG

  • 2″ Light aperture
  • 2 3/8″ OD
  • Round trimless 30° gimbal
  • 10W IC or 15W non-IC
  • Up to 760/1010 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trimless Wall Wash

OSC-3-R-TL-XX-WL

  • 2″ Light aperture
  • 2 3/8″ OD
  • Round trimless 95° wall wash
  • 10W IC or 15W non-IC
  • Up to 420/580 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Oscar Small Square Trim

Trim Downlight

OSC-3-S-T-XX-RF

  • 2″ Light aperture
  • 3 1/2″ OD
  • Square trim downlight
  • 10W IC or 15W non-IC
  • Up to 810/1060 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trim Gimbal

OSC-3-S-T-XX-RG

  • 2″ Light aperture
  • 3 1/2″ OD
  • Square trim 30° gimbal
  • 10W IC or 15W non-IC
  • Up to 760/1010 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trim Wall Wash

OSC-3-S-T-XX-WL

  • 2″ Light aperture
  • 3 1/2″ OD
  • Square trim 95° wall wash
  • 10W IC or 15W non-IC
  • Up to 420/580 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Oscar Small Square Trimless

Trimless Downlight

OSC-3-S-TL-XX-RF

  • 2″ Light aperture
  • 2 3/4″ OD
  • Square trimless downlight
  • 10W IC or 15W non-IC
  • Up to 810/1060 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trimless Gimbal

OSC-3-S-TL-XX-RG

  • 2″ Light aperture
  • 2 3/4″ OD
  • Square trimless 30° gimbal
  • 10W IC or 15W non-IC
  • Up to 760/1010 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trimless Wall Wash

OSC-3-S-TL-XX-WL

  • 2″ Light aperture
  • 2 3/4″ OD
  • Square trimless 95° wall wash
  • 10W IC or 15W non-IC
  • Up to 420/580 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Oscar Medium Round Trim

Trim Downlight

OSC-4-R-T-XX-RF

  • 3″ Light aperture
  • 4 3/8″ OD
  • Round trim downlight
  • 10W IC or 15W and 26W non-IC
  • Up to 2190 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trim Gimbal

OSC-4-R-T-XX-RG

  • 3″ Light aperture
  • 4 3/8″ OD
  • Round trim 30° gimbal
  • 10W IC or 15W and 26W non-IC
  • Up to 2080 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trim Wall Wash

OSC-4-R-T-XX-WL

  • 3″ Light aperture
  • 4 3/8″ OD
  • Round trim 95° wall wash
  • 10W IC or 15W and 26W non-IC
  • Up to 1200 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Oscar Medium Round Trimless

Trimless Downlight

OSC-4-R-TL-XX-RF

  • 3″ Light aperture
  • 3 5/8″ OD
  • Round trimless downlight
  • 10W IC or 15W and 26W non-IC
  • Up to 2190 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trimless Gimbal

OSC-4-R-TL-XX-RG

  • 3″ Light aperture
  • 3 5/8″ OD
  • Round trimless 30° gimbal
  • 10W IC or 15W and 26W non-IC
  • Up to 2080 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trimless Wall Wash

OSC-4-R-TL-XX-WL

  • 3″ Light aperture
  • 3 5/8″ OD
  • Round trimless 95° wall wash
  • 10W IC or 15W and 26W non-IC
  • Up to 1200 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Oscar Medium Square Trim

Trim Downlight

OSC-4-S-T-XX-RF

  • 3″ Light aperture
  • 4 3/8″ OD
  • Square trim downlight
  • 10W IC or 15W and 26W non-IC
  • Up to 2190 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trim Gimbal

OSC-4-S-T-XX-RG

  • 3″ Light aperture
  • 4 3/8″ OD
  • Square trim 30° gimbal
  • 10W IC or 15W and 26W non-IC
  • Up to 2080 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trim Wall Wash

OSC-4-S-T-XX-WL

  • 3″ Light aperture
  • 4 3/8″ OD
  • Square trim 95° wall wash
  • 10W IC or 15W and 26W non-IC
  • Up to 1200 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Oscar Medium Square Trimless

Trimless Downlight

OSC-4-S-TL-XX-RF

  • 3″ Light aperture
  • 3 3/4″ OD
  • Square trimless downlight
  • 10W IC or 15W and 26W non-IC
  • Up to 2190 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trimless Gimbal

OSC-4-S-TL-XX-RG

  • 3″ Light aperture
  • 3 3/4″ OD
  • Square trimless 30° gimbal
  • 10W IC or 15W and 26W non-IC
  • Up to 2080 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trimless Wall Wash

OSC-4-S-TL-XX-WL

  • 3″ Light aperture
  • 3 3/4″ OD
  • Square trimless 95° wall wash
  • 10W IC or 15W and 26W non-IC
  • Up to 1200 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Oscar Large Round Trim

Trim Downlight

OSC-5-R-T-XX-RF

  • 4″ Light aperture
  • 5 1/2″ OD
  • Round trim downlight
  • 40W non-IC
  • Up to 3390 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trim Gimbal

OSC-5-R-T-XX-RG

  • 4″ Light aperture
  • 5 1/2″ OD
  • Round trim 30° gimbal
  • 40W non-IC
  • Up to 3220 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Oscar Large Round Trimless

Trimless Downlight

OSC-5-R-TL-XX-RF

  • 4″ Light aperture
  • 4 5/8″ OD
  • Round trimless downlight
  • 40W non-IC
  • Up to 3390 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trimless Gimbal

OSC-5-R-TL-XX-RG

  • 4″ Light aperture
  • 4 5/8″ OD
  • Round trimless 30° gimbal
  • 40W non-IC
  • Up to 3220 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Oscar Large Square Trim

Trim Downlight

OSC-5-S-T-XX-RF

  • 4″ Light aperture
  • 5 5/8″ OD
  • Square trim downlight
  • 40W non-IC
  • Up to 3390 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trim Gimbal

OSC-5-S-T-XX-RG

  • 4″ Light aperture
  • 5 5/8″ OD
  • Square trim downlight
  • 40W non-IC
  • Up to 3220 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Oscar Large Square Trimless

Trimless Downlight

OSC-5-S-TL-XX-RF

  • 4″ Light aperture
  • 4 3/4″ OD
  • Square trimless downlight
  • 40W non-IC
  • Up to 3390 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish

Trimless Gimbal

OSC-5-S-TL-XX-RG

  • 4″ Light aperture
  • 4 3/4″ OD
  • Square trimless downlight
  • 40W non-IC
  • Up to 3220 delivered lumen
  • Multiple CCT, reflector options
  • Triac/ ELV/ 0-10V dimming
  • Black and White finish
